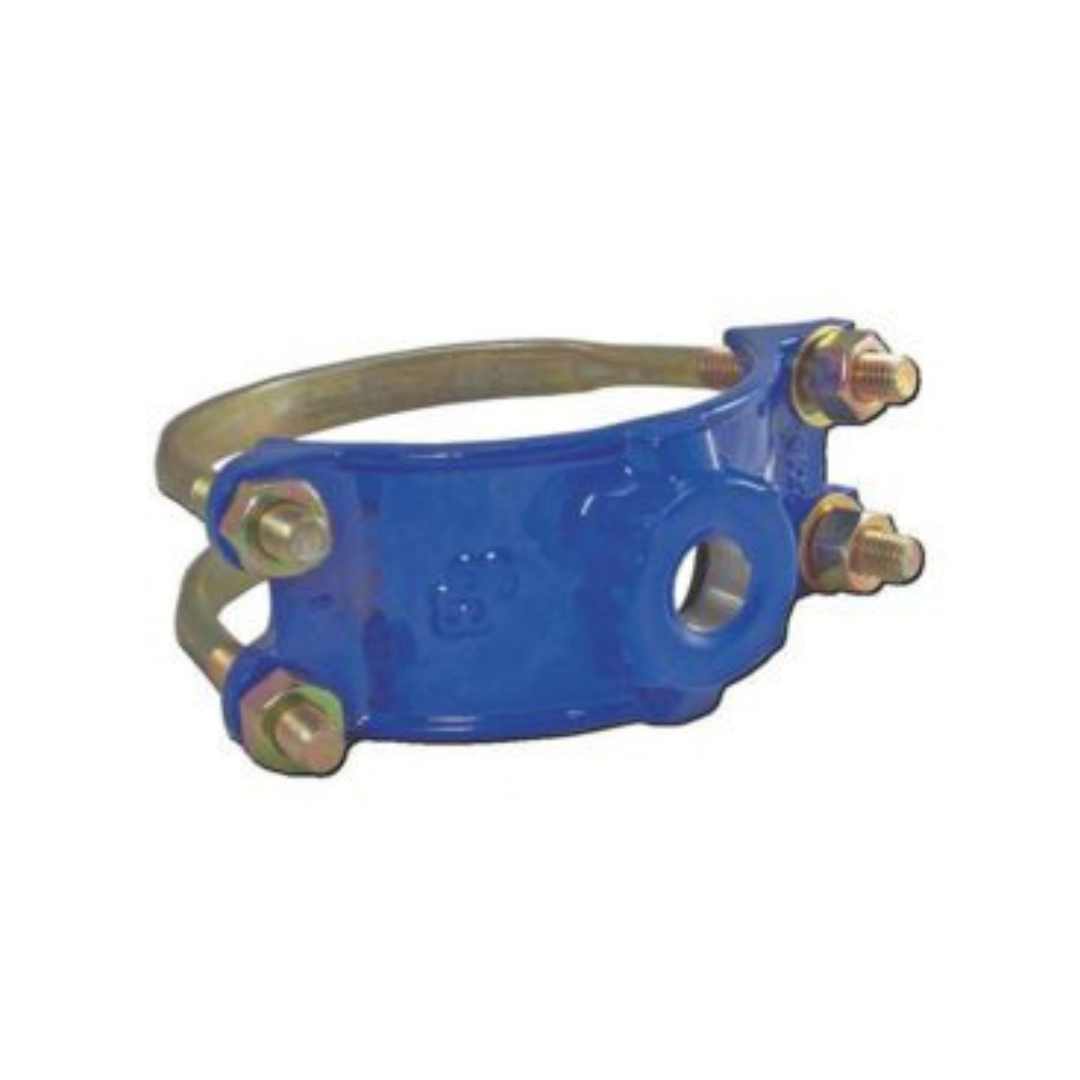

Smith-Blair 313 Double Bale Service Saddle

$78.50$962.46

Smith-Blair 313 Double Bale Service Saddle

$78.50$962.46

Experience unmatched reliability and ease of installation with the Smith-Blair 313 Double Bale Service Saddle. Designed for professionals who refuse to compromise on quality, this ductile iron service saddle is your ultimate solution for connecting branch lines, instruments, and other appurtenances to pipes.

SKU:



Guaranteed Safe Checkout

Add to Supply List

Description

Smith-Blair 313 Double Bale Service Saddle

Experience unmatched reliability and ease of installation with the Smith-Blair 313 Double Bale Service Saddle. Designed for professionals who refuse to compromise on quality, this ductile iron service saddle is your ultimate solution for connecting branch lines, instruments, and other appurtenances to pipes.

Engineered to meet the stringent AWWA C800 Standards, the Smith-Blair 313 offers a wide saddle body for enhanced stability, ensuring a secure fit every time. The TaperSeal™ gasket is fully bonded within the cavity, staying firmly in place to provide a leak-free seal that stands the test of time.

Enjoy versatility with NPT outlets available in sizes ranging from 1″ to 4″, providing the flexibility you need for various applications. Its innovative design features a closed lug on one side combined with wraparound bales, acting as a hinge to make installation quicker and more efficient.

Protected by a Flexi-Coat® Fusion-Bonded Epoxy Finish per AWWA C213 standards, this service saddle not only enhances performance but also extends durability under harsh conditions.

Don’t settle for anything less than excellence—choose the Smith-Blair 313 Double Bale Service Saddle today and ensure your projects stand strong. Embrace superior quality and secure connections effortlessly; order now!

Double bale Ductile Iron service saddle with TaperSeal™ gasket and wraparound bales to connect branch lines, instruments, and other appurtenances to pipe.

Key Features:

  • Working Pressure: Up to 300 PSI, depending on size and application
  • Meets applicable AWWA C800 Standards
  • The wide saddle body provides stability on the pipe
  • The gasket is fully bonded to the cavity to hold it in place
  • NPT outlets available in sizes 1″ thru 4″
  • A closed lug on one side, combined with the bale, acts as a hinge for easier installation
  • Flexi-Coat® Fusion-Bonded Epoxy Finish, per AWWA C213

313 PRODUCT SHEET

Additional information

Weight N/A
Dimensions N/A
Nominal Pipe Size

4 Inch, 5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch

NPT Tap Inlet Size

1 Inch, 1.25 Inch, 1.5 Inch, 2 Inch, 2.5 Inch, 4 Inch

Outside Diameter

10.64 in. – 12.12 in., 10.75 in. – 11.10 in., 12.62 in. – 14.32 in., 12.75 in. – 13.20 in., 14.73 in. – 15.65 in., 4.40 in. – 4.50 in., 4.40 in. – 4.80 in., 4.74 in. – 5.14 in., 5.00 in. – 5.63 in., 5.94 in. – 6.70 in., 5.94 in. – 6.90 in., 6.84 in. – 7.60 in., 7.69 in. – 8.72 in., 7.69 in. – 9.05 in., 8.54 in. – 10.10 in.

Bolt Type

Galvanized, Stainless Steel
