Magna-Matic Dust Collector

$566.00

Magna-Matic Dust Collector

$566.00

SKU: SHPMAG-200



  • People Who Care – Call Us at 833-232-3365
  • If You Can’t Find It, We Probably Have It – Contact Us
Guaranteed Safe Checkout

Description

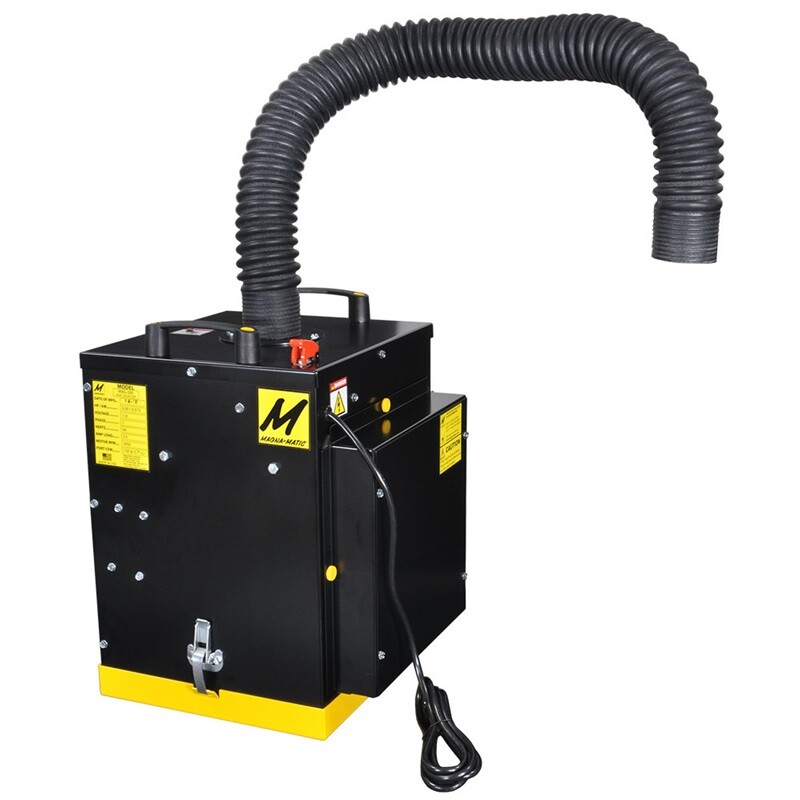

Magna-Matic Dust Collector

On 10/16/2017 the MAG-200 entered its 2nd generation, with many improvements.

  • New design 10″ impeller for increased performance
  • Carry handles mounted on top
  • Quick release catch clamps to remove the bottom tray for faster clean out
  • Internal filter guides to make it easier to re-install the aluminum mesh filter after cleaning
  • 2.5″ INLET (can be easily changed to 3″ or 4″)
  • 3rd stage filter now standard on all MAG-200 Dust Collectors

Industrial dust collector designed for any metal grinding, sanding, or polishing operations. The MAG-200 features 3 stages of filtration aluminum mesh, MERV 8 pad filter, and MERV 13 pleated filter and has a quiet 70 decibel operating noise level. It will safely draw live sparks, dust, and grit and filter the air that passes through at a MERV 8 rating, lastly the air passes through the MERV 13 filter.

Performance Data:

  • 2.5″ Inlet CFM = 250
  • 3″ Inlet CFM = 330
  • 4″ Inlet CFM = 400
  • No Inlet CFM = 440
  • Pressure 6.5″ H2O @ 0 CFM

MERV 8 rated filters will remove particles 3 to 10 micron in size and larger, which includes most dust and grit.
MERV 13 rated filters will remove particles 0.3 to 1 micron in size and larger, which includes fine dust and some fumes/smoke.

The MAG-200 can be used with the MAG-8000 Lawn Mower Blade Sharpener, the MAG-9000 Lawn Mower Blade Sharpener, or the MAG-12008 Lawn Mower Blade Cleaner.

Included In Box

  • 1 MAG-200 Dust Collector (110 volt, with 7 foot long cord)
  • 1 Aluminum Mesh Filter (installed) Part # 200-12
  • 1 MERV 8 Pad Filter (installed) Part# 200-15
  • 1 Crushproof heavy rubber hose 3.5 foot long Part #200-26
  • 5 Extra Replacement Pad Filters Part# 200-15
  • 1 Third Stage Filter Shroud
  • 1 MERV 13 Pleated Filter Part# 200-17

Additional information

Weight 67 lbs
Dimensions 13 × 19 × 15 in
