Description

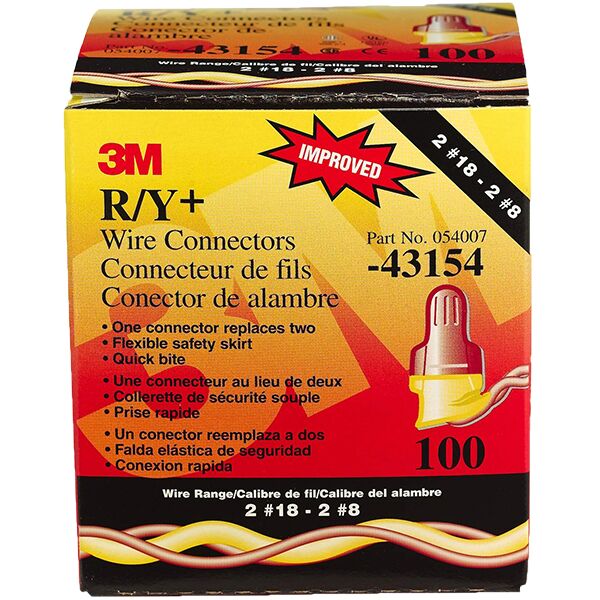

3M Wire Connector – Performance Plus – Yellow/Red
- Offers a strong bite in a pigtail application for a long-lasting connection
- An expandable spring lets you take in more wire uptake and reuse
- The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors
- Great for all types of jobs – from industrial and residential construction, to automotive, marine and appliance applications
- Use with copper conductors ranging from 22 to 8 AWG
- Red and yellow twist electrical connector
- Simplifies selection of right connector for a wide range of wiring jobs
- Includes three connector sizes with increased range to handle the work of seven standard connectors
- Comfortable
- Easy to use
- Used in our DBRY connectors – CLICK HERE TO SEE FULL CONNECTORS
|
Agency Approvals
|
UL, CE, IEC, and CSA
|
|
Brand
|
Scotchlok?
|
|
Color
|
Red, Yellow
|
|
Conductor Sizes
|
22 – 8 AWG
|
|
Connection Type
|
Wire
|
|
Connector Style
|
Twist On
|
|
Family
|
3M? Performance Plus Wire Connector
|
|
Flame Retardant
|
Yes
|
|
Maximum Operating Temperature (Celsius)
|
105 Degree Celsius
|
|
Maximum Operating Temperature (Fahrenheit)
|
221 Degree Fahrenheit
|
|
Maximum Recommended Voltage Rating
|
600 V
|
|
Maximum Wire Gauge
|
8 AWG
|
|
Minimum Wire Gauge
|
22 AWG
|
|
Packaging
|
Pouch
|
|
Product Type
|
Connector
|
|
RoHS 2011/65/EU Compliant
|
Yes
|
|
RoHS EU Comments
|
RoHS 2011/65/EU compliant without exemption
*Important RoHS information |
