TeeJet Turbo TwinJet Dual Flat Fan Spray Tips

  • Dual outlet design produces two 110° flat fan spray patterns using the patented technology from the Turbo TeeJet® nozzle.

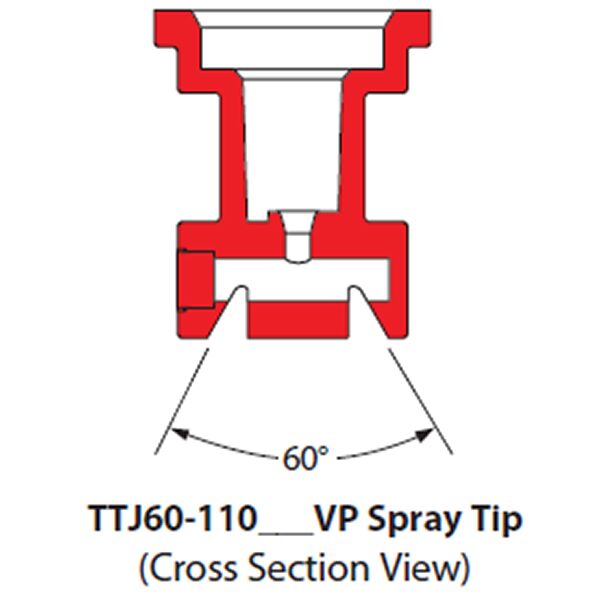

  • The angle between each spray pattern is 60° forward and back.
  • Best suited for broadcast spraying where superior leaf coverage and canopy penetration is important.
  • Droplet size range is slightly larger than for the same capacity Turbo TeeJet nozzle providing drift-reducing properties with increased canopy coverage and penetration.
  • Molded polymer for excellent chemical and wear resistance.

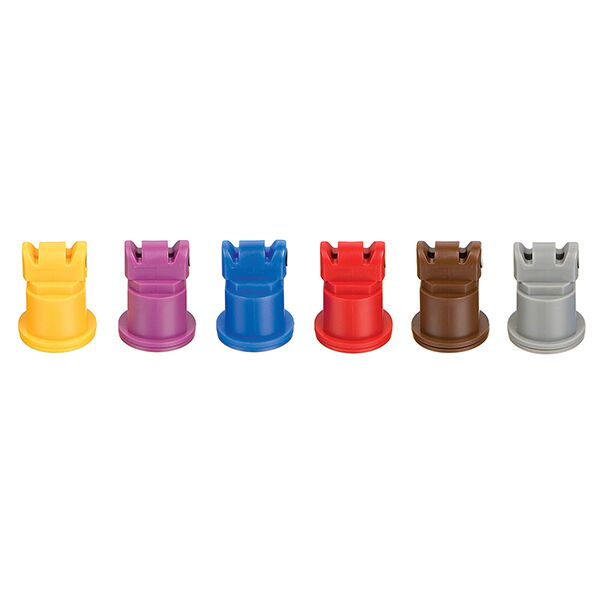

  • Available in six VisiFlo® color-coded capacities with pressure ranges from 20–90 PSI (1.5–6 bar).
  • Ideal for use with automatic sprayer controllers.
  • Automatic alignment when used with 25612-*-NYR Quick TeeJet® cap and gasket.

For Nozzle Spray Rate Charts or More Information – Please See the Complete TeeJet Catalog

Additional information

Weight 0.25 lbs
Dimensions 0.5 × 0.5 × 0.5 in

Tee Jet Nozzle Size

6011002 – Yellow, 60110025 – Purple, 6011003 – Blue, 6011004 – Red, 6011005 – Brown, 6011006 – Gray

Tee Jet Nozzle Type

Extended Range Flat Fan, TwinJet Dual Nozzles
