Description

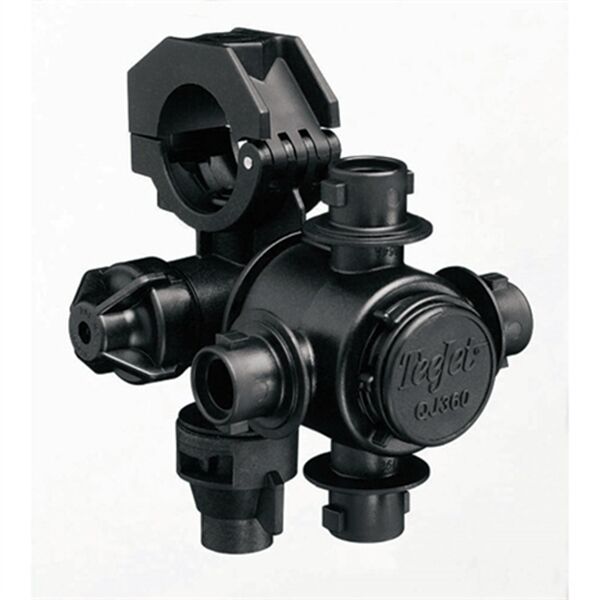

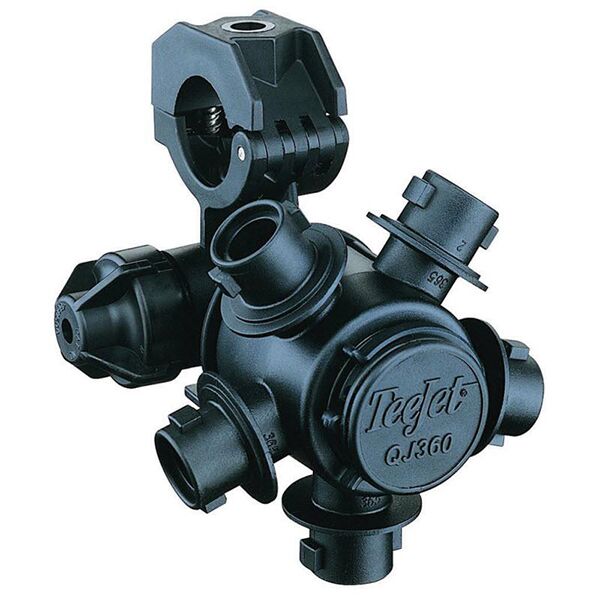

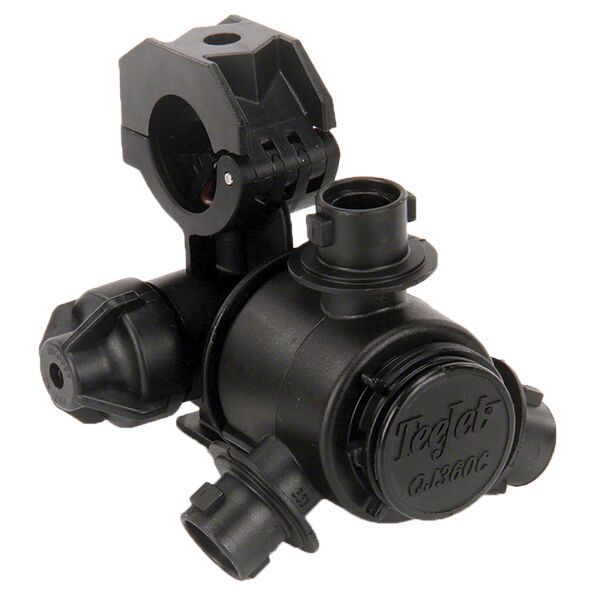

TeeJet QuickJet Outlet Boom Adapter
- QJ360C Nozzle Body Series for Wet Booms
- Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.
- Positive shutoff between each position.
- Automatic spray alignment using flat fan spray tips.
- Maximum operating pressure of 300 PSI (20 bar).
- Available in 1/2 inch, 3/4 inch or 1 inch pipe connections.
- Includes ChemSaver® diaphragm check valve for drip-free shutoff.
- Standard EPDM diaphragm with Viton® available as an option.
- Flow Rate: 2.25 GPM at 5 PSI pressure drop, 3.18 GPM with 10 PSI (0.69 bar) pressure drop.
- Mounts to a 3/89 (9.5 mm) hole drilled in pipe or tubing.
- Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16 or M8 bolt.
- Hinged upper clamp reduces assembly time and fits inside common boom channels.
