Description

TeeJet Air Induction Flat Spray Tips

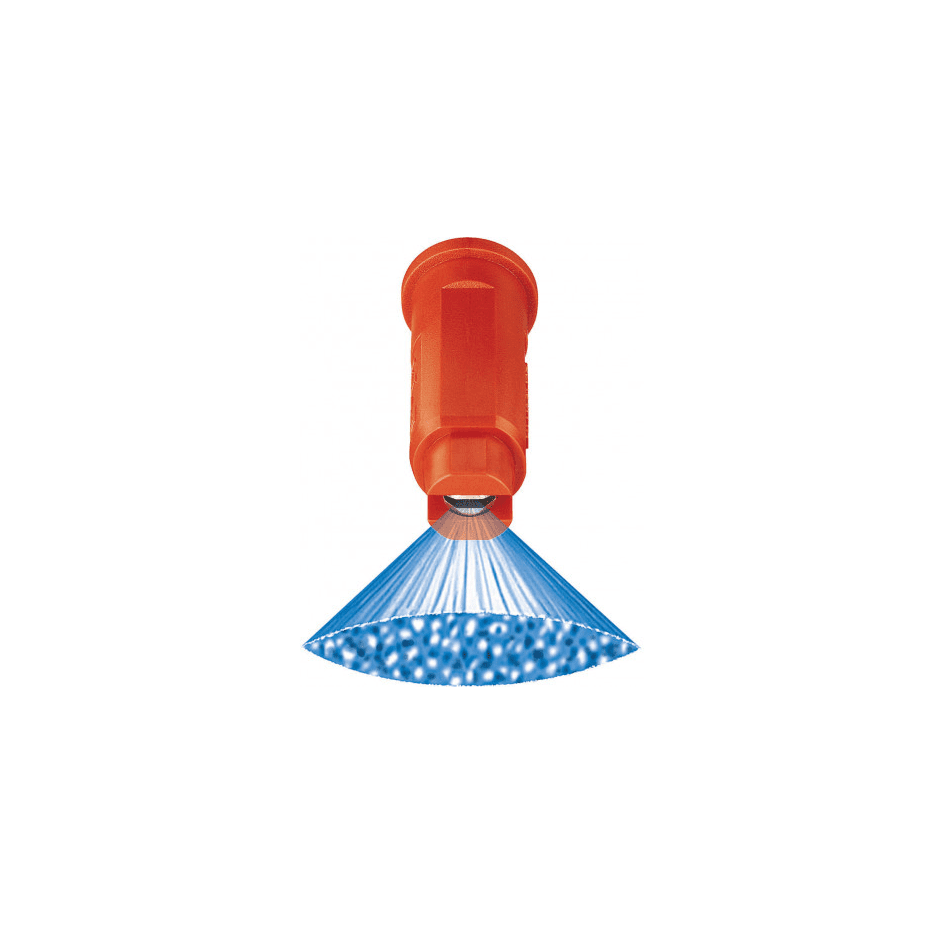

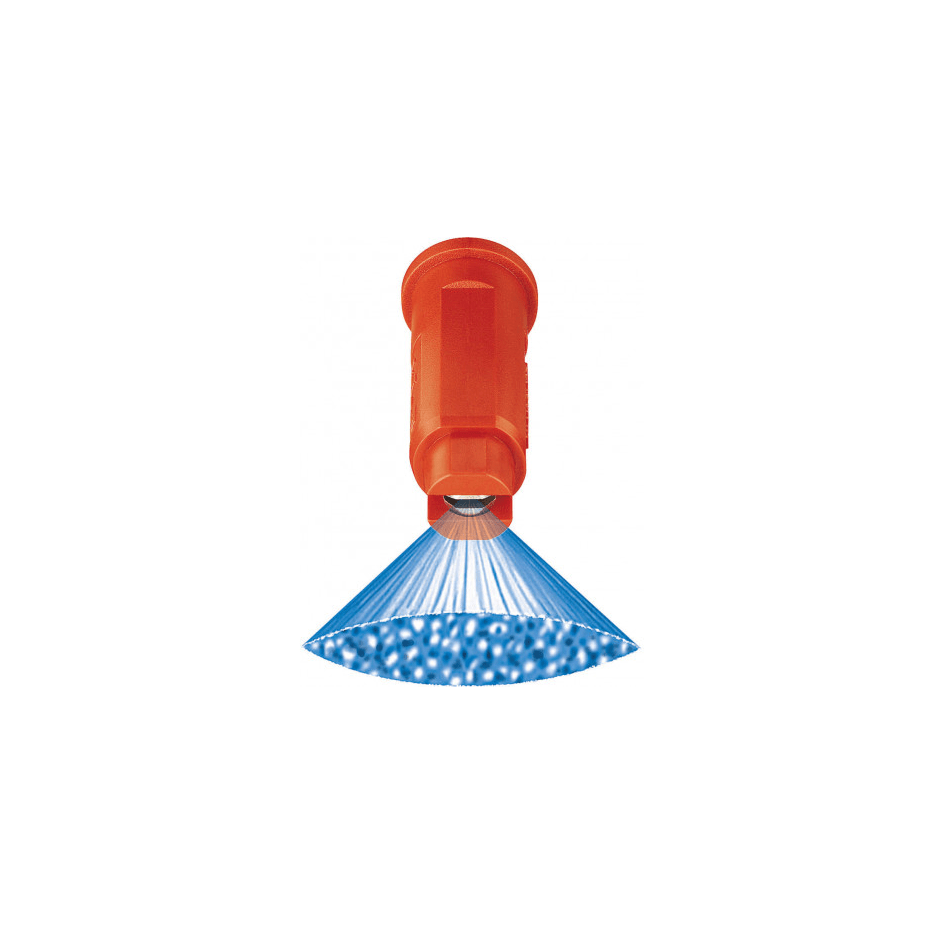

Stainless steel insert produces a tapered
edge flat spray pattern for uniform
coverage in broadcast spraying.
Polymer insert holder and pre-orifice
with VisiFlo® color-coding.
Larger droplets for less drift.
Available in eight capacities with
a recommended pressure rating
30–115 PSI (2–8 bar).
Depending on the chemical, produces
large air-filled drops through the use
of a Venturi air aspirator.
Automatic spray alignment with
25598-*-NYR Quick TeeJet® cap
and gasket. Reference page 64
for more information.

For Nozzle Spray Rate Charts or More Information – Please See the Complete TeeJet Catalog

Weight	0.25 lbs
Dimensions	0.5 × 0.5 × 0.5 in
Manufacturer	TeeJet

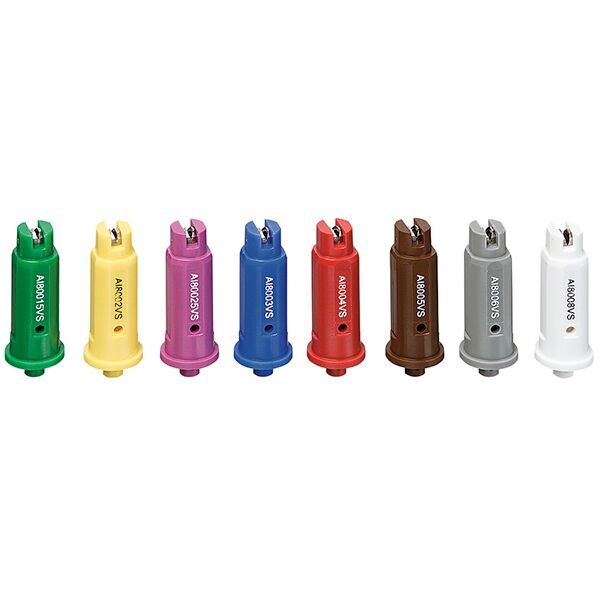

Tee Jet Nozzle Size	8002 – Yellow, 80025 – Purple, 8003 – Blue, 8004 – Red, 8005 – Brown, 8006 – Gray
Tee Jet Nozzle Type	Air Induction
