Description

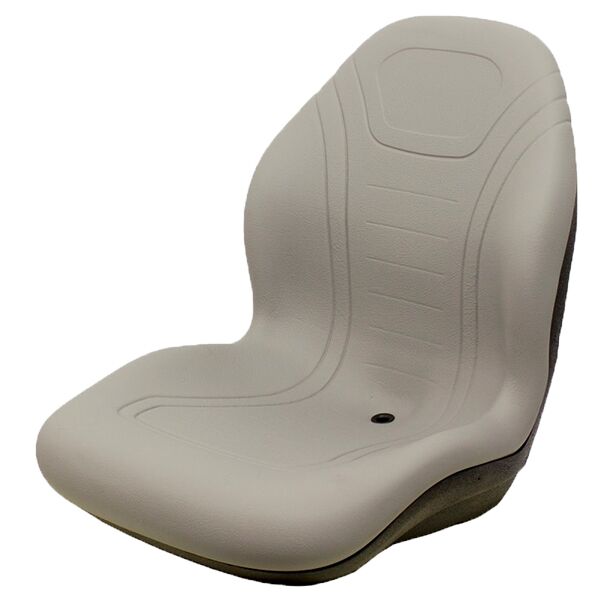

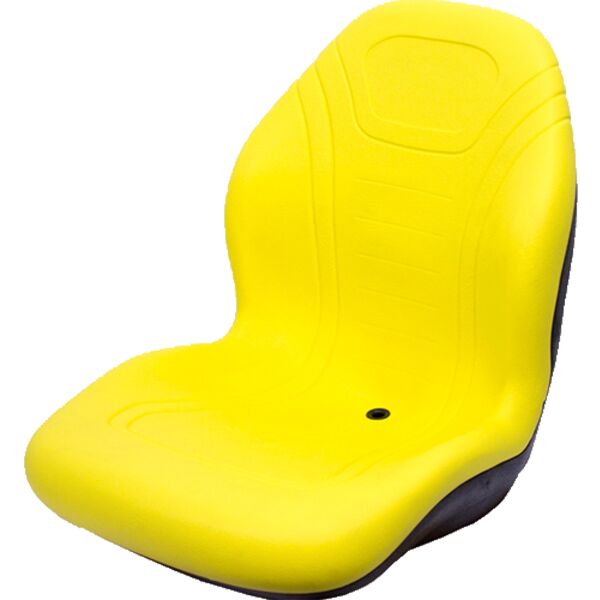

Premium Replacement Equipment Seats

• Durable vinyl covering
• Rugged blow molded plastic bucket frame is corrosion resistant
• Ergonomical foam cushion for operator comfort
• Vacuum formed vinyl cover
• Waterproof with central drain hol
• Multiple mounting patterns
• Uses standard 5/16 18UNC bolts
• Mounting patterns include (W x D): 8″ x 11.5″ and 11.25″ x 11.5″

Applications:

John Deere® Compact Utility Tractors, Excavators, Gators, Lawn Mowers, and Skid Steers:

• Compact Utility Tractors: 655, 755, 756, 855, 856, 955, 2305 (must also order new seat switch, PN: 81210), 2320 (must also order new seat switch, PN: 81210), 2520 (must also order new seat switch, PN: 81210), 2720 (must also order new seat switch, PN: 81210), 3120, 3320, 3520, 3720, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4510, 4520, 4600, 4610, 4700, 4710, 4720
• Excavators: 27CZTS, 35CZTS
• Gators: 855D, RSX 850i, RSX 860E, RSX 860i, RSX 860M, XUV 550, XUV 550 S4 (After Serial Number (ASN) 050,001), XUV 560, XUV 560 S4, XUV 560E, XUV 590i, XUV 590i S4, XUV 590M, XUV 590M S4, XUV 625i, XUV 825E, XUV 825i, XUV 825i S4, XUV 825M, XUV 825M S4, XUV 835E, XUV 835M, XUV 855D, XUV 855D S4, XUV 855E, XUV 855M, XUV 855M S4, XUV 865E, XUV 865M
• Lawn Mowers (Must Order PN: 6801 or 6802 Which Include the JD Turf Utility Seat Bracket That Allows the Seat to Hinge Forward. Factory-Installed Rivets are Required for Some Applications.): 240, 245, 260, 265, 285, 315, 318D, 319D, 320, 320D, 323D, 325 (SN 70001 & Up), 326D, 332D, 335 (SN 70001 & Up), 335D, 345 (SN 70001 & Up), 415 (SN 70001 & Up), 425 (SN 70001 & Up), 445, 455, F510, F525, F710 (SN 090001 & Up), F725 (SN 090001 & Up), F735, G100, GT225, GT235, GT235E, GT242, GT245, GT262, GT275, GX255, GX325, GX335, GX345, GX355, SST16, SST18
• Lawn Mowers (Factory-Installed Rivets are Required for Some Applications): 165, 318, 2243, 2246, 2500, 2500A, 2500A Fairway, 2500B, 2500E, 2500E Fairway, 2520A, 2653, 2653A, 2653B, 3215, 3215A, 3215 Fairway, 3225C Fairway, 3235, 3235A, 3235A Fairway, 7400, F910, F911, F912, F915, F925, F930, F932, F935, F1145, L111, LA115, LA125, LA145, LA155, LT150, X465 (must also order new seat switch, PN: 81210), X475 (must also order new seat switch, PN: 81210), X700 (must also order new seat switch, PN: 81210), Z225, Z440
• Lawn Mowers (Re-Use Original Hinge Bracket): X485, X495, X590, X720, X724, X728, X729, X740, X744, X748, X749, X750, X754, X758
• LX Series Lawn Mowers (Must Order PN: 6801 or 6802 Which Include the JD Turf Utility Seat Bracket That Allows the Seat to Hinge Forward. Factory-Installed Rivets are Required for Some Applications.): LX255, LX266, LX277, LX279, LX280, LX288, LX289
• Skid Steers (will only fit the models listed if the original seat did NOT have a suspension): 24, 24A, 70, 90, 125, 170, 240, 250, 260, 270, 280, 313, 315, 317, 318D, 318E, 319D, 319E, 320, 320D, 320E, 324E, 325, 326D, 326E, 328, 328D, 328E, 332, 332D, 332E, CT315

Toro® Lawn Mowers (factory-installed rivets are required for this application):

• Lawn Mowers: 15-35 HXL (drilling required to install switch), 314-8, ZX 525
• Greens Master Series: 3000, 3050, 3100, 3150, 3250D
• Grounds Master Series: 3280D, 3500D, 4500D, 4700D
• Multi Pro Sprayers: 1200, 1250
• Reel Master Series: 2000D, 3100D, 5200D, 5400D, 5410D, 5500D, 5510, 6500D

Jacobsen® Lawn Mowers: AR-5, G-Plex III Greens, Greens King 6, LF-1880 Fairway, LF-3400 Fairway, LF-3800 Fairway, LF-4675 Fairway, LS128 Fairway, Tri King 1800G Greens, Tri King 1900D Greens
