Description

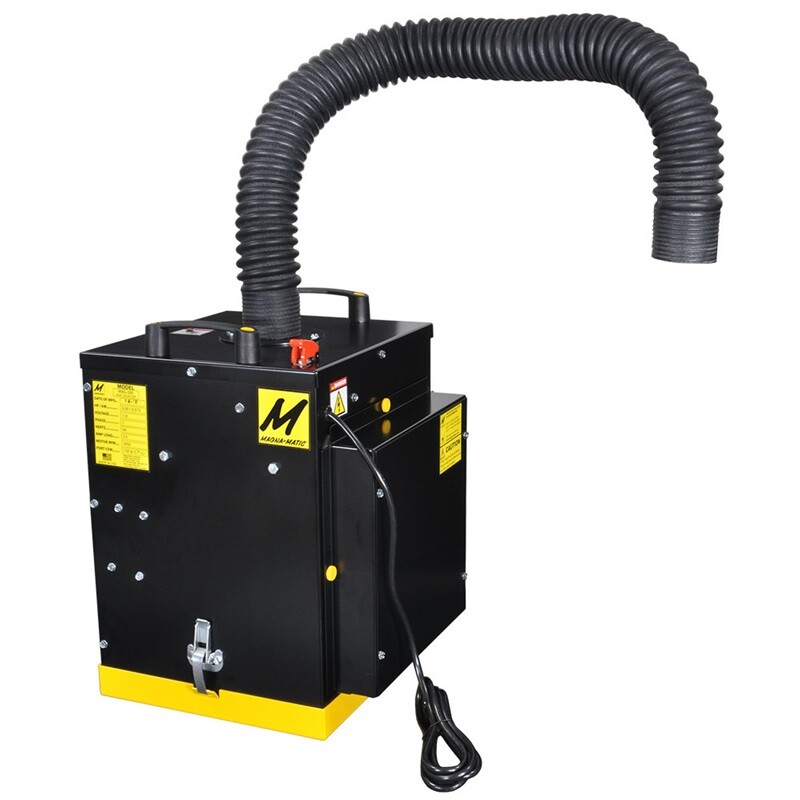

Magna-Matic Dust Collector
On 10/16/2017 the MAG-200 entered its 2nd generation, with many improvements.
- New design 10″ impeller for increased performance
- Carry handles mounted on top
- Quick release catch clamps to remove the bottom tray for faster clean out
- Internal filter guides to make it easier to re-install the aluminum mesh filter after cleaning
- 2.5″ INLET (can be easily changed to 3″ or 4″)
- 3rd stage filter now standard on all MAG-200 Dust Collectors
Industrial dust collector designed for any metal grinding, sanding, or polishing operations. The MAG-200 features 3 stages of filtration aluminum mesh, MERV 8 pad filter, and MERV 13 pleated filter and has a quiet 70 decibel operating noise level. It will safely draw live sparks, dust, and grit and filter the air that passes through at a MERV 8 rating, lastly the air passes through the MERV 13 filter.
Performance Data:
- 2.5″ Inlet CFM = 250
- 3″ Inlet CFM = 330
- 4″ Inlet CFM = 400
- No Inlet CFM = 440
- Pressure 6.5″ H2O @ 0 CFM
MERV 8 rated filters will remove particles 3 to 10 micron in size and larger, which includes most dust and grit.
MERV 13 rated filters will remove particles 0.3 to 1 micron in size and larger, which includes fine dust and some fumes/smoke.
The MAG-200 can be used with the MAG-8000 Lawn Mower Blade Sharpener, the MAG-9000 Lawn Mower Blade Sharpener, or the MAG-12008 Lawn Mower Blade Cleaner.
Included In Box
- 1 MAG-200 Dust Collector (110 volt, with 7 foot long cord)
- 1 Aluminum Mesh Filter (installed) Part # 200-12
- 1 MERV 8 Pad Filter (installed) Part# 200-15
- 1 Crushproof heavy rubber hose 3.5 foot long Part #200-26
- 5 Extra Replacement Pad Filters Part# 200-15
- 1 Third Stage Filter Shroud
- 1 MERV 13 Pleated Filter Part# 200-17
