Description

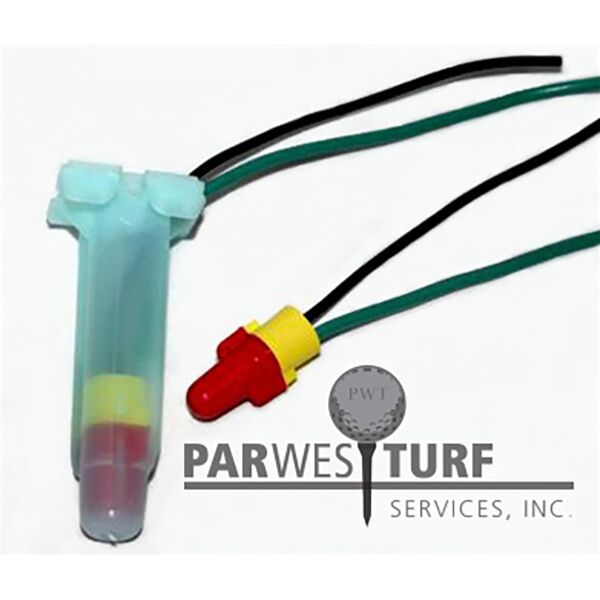

3M Direct Bury Splice Kits – DBRY
- UL Listed for 600 volts in direct bury applications
- Twist-on type for quick connection
- Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
- Delivers uniform holding power
- Withstands temperatures up to 221 °F (105 °C)
3M™ Direct Bury Splice Kits combine the quick, reliable connection of a 3M™ Performance Plus™ Wire Connector with the moisture resistance of a high impact, UV resistant tube prefilled with moisture resistant grease. It is UL Listed for 600 volts in direct bury applications.
Premium splice designed to connect and moisture seal an electrical connection for direct bury applications, rated up to 600V. Moisture resistant grease acts as a barrier for damp environments, reducing exposure to the elements in outdoor boxes and underground connections. Common uses: golf course irrigation, landscape lighting, direct bury.
Specifications
| Application Temperature Range (Celsius) | 0 – 49 Degrees Celsius |
| Application Temperature Range (Fahrenheit) | 32 – 120 Degrees Fahrenheit |
| Brand | 3M™ |
| Color | Multi-Color, Red, Yellow |
| Conductor Size | 18 – 10 AWG |
| Conductor Sizes | 18 – 10 AWG |
| Connection Type | Wire |
| Connector Style | Direct Bury |
| Encapsulation Method | Moisture sealed spring connector |
| Flame Retardant | UL-94 V-2 |
| Insulation Material | Tube is UV resistant Polypropylene |
| Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Wire Gauge | 10 AWG |
| Minimum Wire Gauge | 18 AWG |
| Operating Temperature (Celsius) | -40 °C to 105 °C |
| Operating Temperature (Fahrenheit) | -40 °F to 221 °F |
| Operating Temperature Range (Celsius) | -40 °C to 105 °C |
| Operating Temperature Range (Fahrenheit) | -40 °F to 221 °F |
| Product Type | Connector |
| RoHS 2011/65/EU Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption *Important RoHS information |
| TDS Required | Yes |
| Wire Connector Type | Direct Bury Splice Kit |
