Kasco Marine Home Series Diffused Aeration

Kasco Marine Home Series Diffused Aeration Systems are designed specifically for homeowners with small, residential ponds. Using a stainless steel cabinet, 1/4HP compressor, and a single-loop diffuser, these systems work great in ponds smaller than 2 acres with up to 20 ft. of depth.

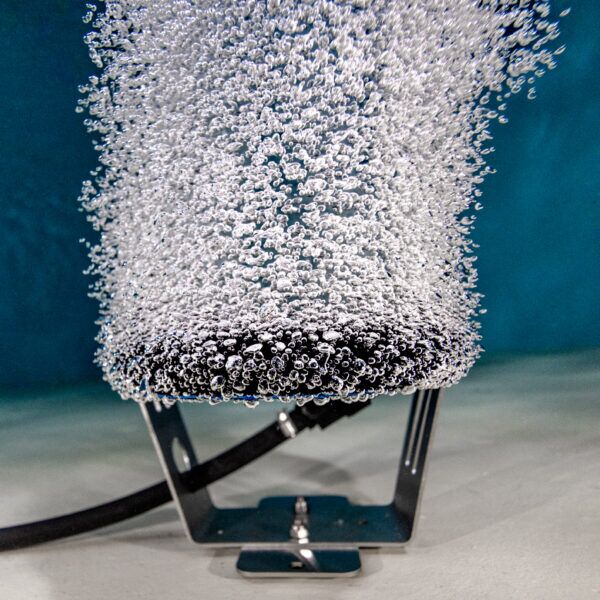

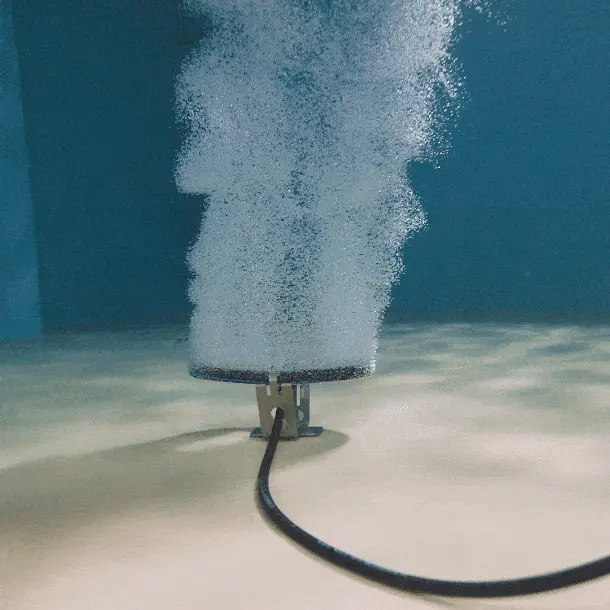

Home Series Diffused Aeration Systems provide beneficial water movement from the bottom up to improve water quality in backyard ponds. Using a shore-mounted compressor, air is continuously pumped through tubing lines that run to a single-loop diffuser on the pond bottom. The air is released upward, creating non-stop water movement and mixing, which is vital in eliminating and preventing weed overgrowth, algae, unpleasant odors, and other issues.

System Features:

• Ideal for ponds smaller than 2 acres with up to 20 ft. of depth
• Cabinet design ensures quiet operation
• Reliable in tough, outdoor conditions
• No electricity required in the water
• Cleans and clarifies pond environment for an inviting, beautiful atmosphere
• Designed for continuous water movement to eliminate and prevent weed and algae overgrowth, and other common water quality issues

Packages Include

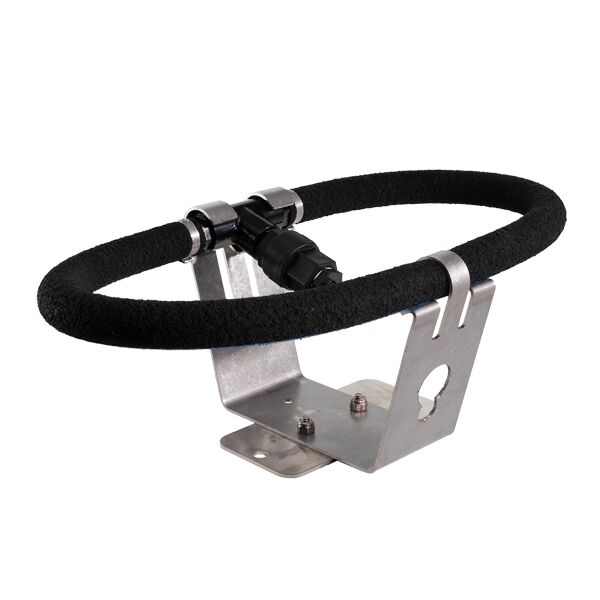

• 1 or 2 single-loop diffuser(s)

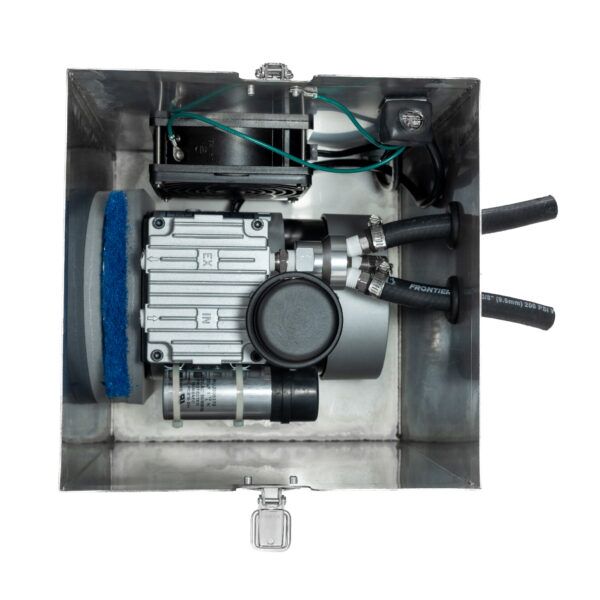

• 1/4HP compressor

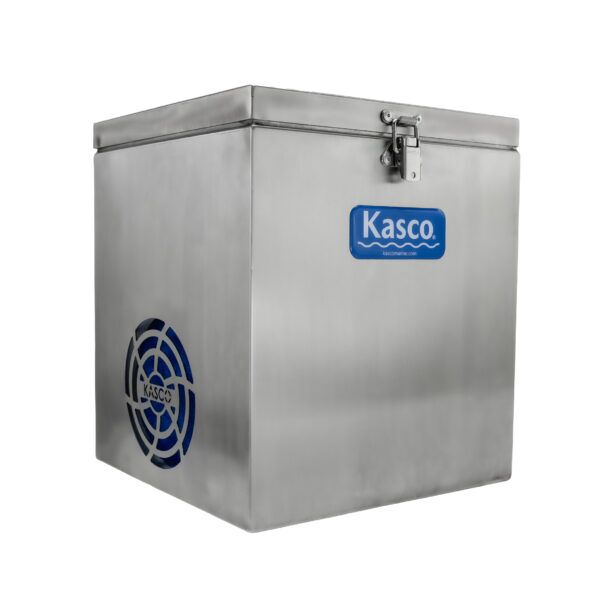

• Stainless steel compressor cabinet
• SureSink weighted tubing
• Optional mounting bracket (purchased separately with part number 774440)

Home Series Packages

Part #	Diffusers	Compressor	Voltage	Weighted Tubing
KASDA1	1	1/4HP	120V	(1) 100 ft. roll 3/8 in. tubing
KASDAH1	1	1/4HP	208-240V	(1) 100 ft. roll 3/8 in. tubing
KASDA2	2	1/4HP	120V	(2) 100 ft. roll 3/8 in. tubing
KASDAH2	2	1/4HP	208-240V	(2) 100 ft. roll 3/8 in. tubing

Depth Recommendation

Home Series Diffused Aeration (DA1)	Home Series Diffused Aeration (DA2)
Pond Size	Pond Depth (ft.)	Pond Depth (ft.)
1/4 Acre	6 – 8	3 – 6
1/2 Acre	9 – 12	6 – 8
1 Acre	13 – 20	9 – 12
2 Acres	N/A	13 – 20
