Description

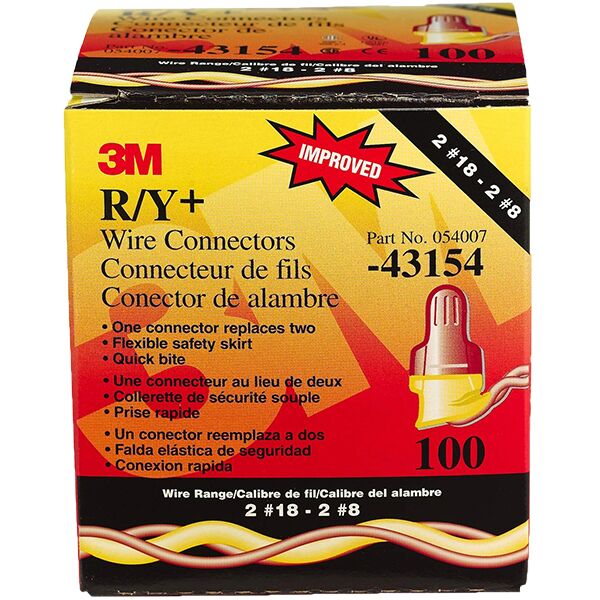

3M Wire Connector – Performance Plus – Yellow/Red
- Offers a strong bite in a pigtail application for a long-lasting connection
- An expandable spring lets you take in more wire uptake and reuse
- The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors
- Great for all types of jobs – from industrial and residential construction, to automotive, marine and appliance applications
- Use with copper conductors ranging from 22 to 8 AWG
- Red and yellow twist electrical connector
- Simplifies selection of right connector for a wide range of wiring jobs
- Includes three connector sizes with increased range to handle the work of seven standard connectors
- Comfortable
- Easy to use
- Used in our DBRY connectors – CLICK HERE TO SEE FULL CONNECTORS
| Agency Approvals | UL, CE, IEC, and CSA |
| Brand | Scotchlok™ |
| Color | Red, Yellow |
| Conductor Sizes | 22 – 8 AWG |
| Connection Type | Wire |
| Connector Style | Twist On |
| Family | 3M™ Performance Plus Wire Connector |
| Flame Retardant | Yes |
| Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Wire Gauge | 8 AWG |
| Minimum Wire Gauge | 22 AWG |
| Packaging | Pouch |
| Product Type | Connector |
| RoHS 2011/65/EU Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption *Important RoHS information |
